The Need for Reinforced Concrete: Strengthening Concrete with Steel
Concrete is an inherently strong material in compression, meaning it can withstand significant pressure or "squeezing" forces. However, concrete is weak in tension, or the forces that pull it apart. For example, when a beam is subjected to a load, the bottom portion of the beam may stretch and experience tension, while the top may experience compression. This is where steel reinforcement comes into play.
Steel is incredibly strong in tension, and when embedded in concrete, it compensates for concrete's weakness in tension, allowing the composite material—reinforced concrete—to handle both tensile and compressive forces effectively. This synergy between concrete and steel allows reinforced concrete to achieve high strength and durability, making it the ideal material for large-scale infrastructure projects.
Reinforced concrete (RC) is one of the most widely used materials in modern construction, playing a critical role in building infrastructure that is both strong and durable. Whether used for bridges, buildings, roads, or other structural applications, reinforced concrete ensures the structural integrity of these elements in the face of varied environmental and load-bearing challenges. The importance of reinforced concrete lies not only in its strength and versatility but also in the method of its design and construction, which is guided by detailed specifications from structural engineers to ensure safety, stability, and longevity.
Reinforced Concrete
The Role of a Structural Engineer: Ensuring Safety and Performance
The design and construction of reinforced concrete structures require careful planning and calculation to ensure safety, stability, and performance over time. This responsibility typically falls to a structural engineer, who follows a series of detailed guidelines and specifications to ensure that the reinforced concrete is designed to handle the expected loads and stresses while complying with building codes and safety regulations.
Key roles of the structural engineer include:
- Load Analysis: Engineers must calculate the loads that a structure will be subjected to, including dead loads (the weight of the structure itself), live loads (temporary loads like people, furniture, and vehicles), and environmental loads (wind, seismic activity, temperature changes, etc.).
- Design of Reinforcement: Engineers determine the appropriate amount and placement of steel reinforcement within the concrete, ensuring that the steel will provide the necessary tensile strength to balance the concrete’s compressive capacity.
- Material Selection: The choice of concrete mix and steel reinforcement (e.g., mild steel or high-strength steel) is essential to ensure that the material properties match the structural needs of the project.
- Structural Detailing: Detailed drawings and specifications are developed, outlining the size, location, and arrangement of reinforcing bars, known as rebar, within the concrete to achieve the desired strength and performance.
The Method Behind Reinforced Concrete Construction
The method of reinforcing concrete involves combining steel reinforcement with the concrete mix, and the process typically follows these key steps:
1. Design Phase:
- Structural Analysis: The first step is a thorough analysis of the forces and stresses acting on the structure, using advanced software and engineering principles. This informs the design of the reinforcement and the selection of concrete mix ratios.
- Reinforcement Layout: The engineer specifies the type, size, quantity, and spacing of steel reinforcement, considering factors like load distribution, environmental conditions (e.g., exposure to corrosion), and durability requirements.
2. Material Selection:
- Concrete Mix: Concrete is typically composed of cement, water, fine aggregates (sand), and coarse aggregates (gravel or crushed stone). The engineer selects the appropriate mix proportions to achieve the required compressive strength, often measured in megapascals (MPa) or pounds per square inch (psi).

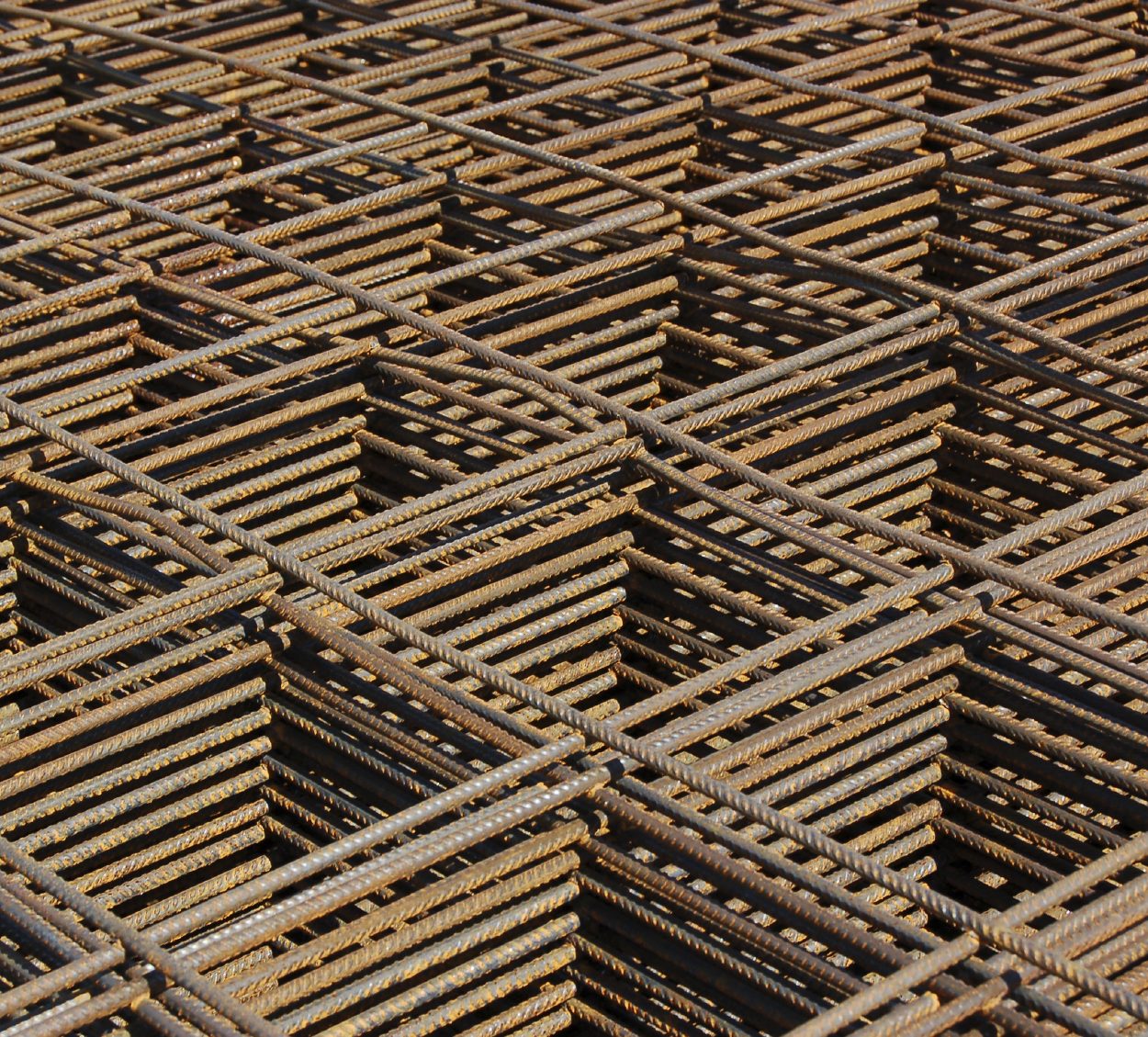

- Reinforcement Steel: Reinforcing bars (rebar) are typically made of steel, with diameters ranging from 6 mm to 40 mm. The steel bars are selected based on tensile strength, and their surface is often deformed to improve bonding with the surrounding concrete.
3. Fabrication and Placement of Reinforcement:
- Cutting and Bending: The steel bars are cut and bent according to the structural engineer’s design specifications. This is done at the fabrication site or on-site if necessary. The rebar must be bent accurately to fit into the formwork and provide the required strength.

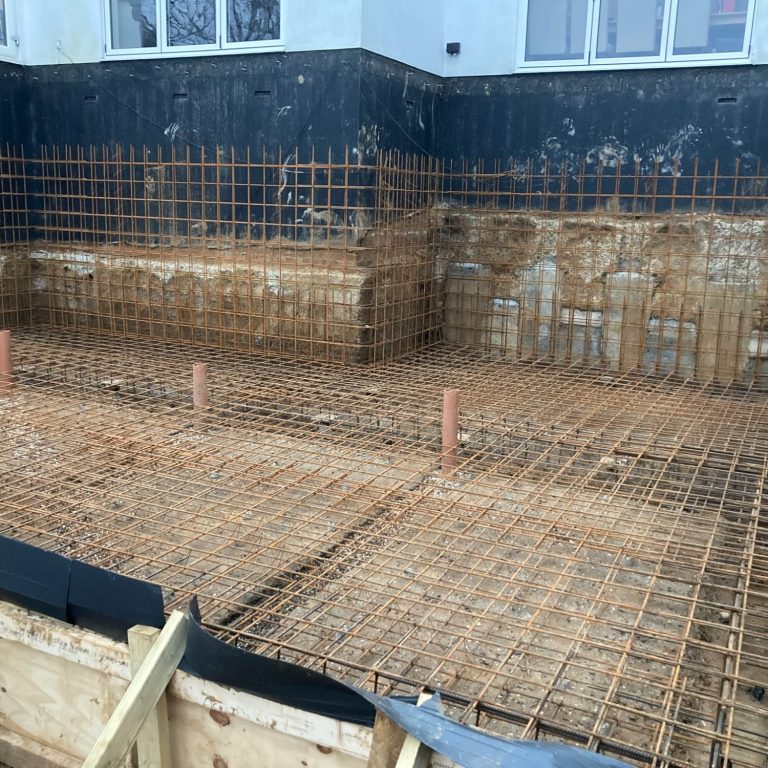

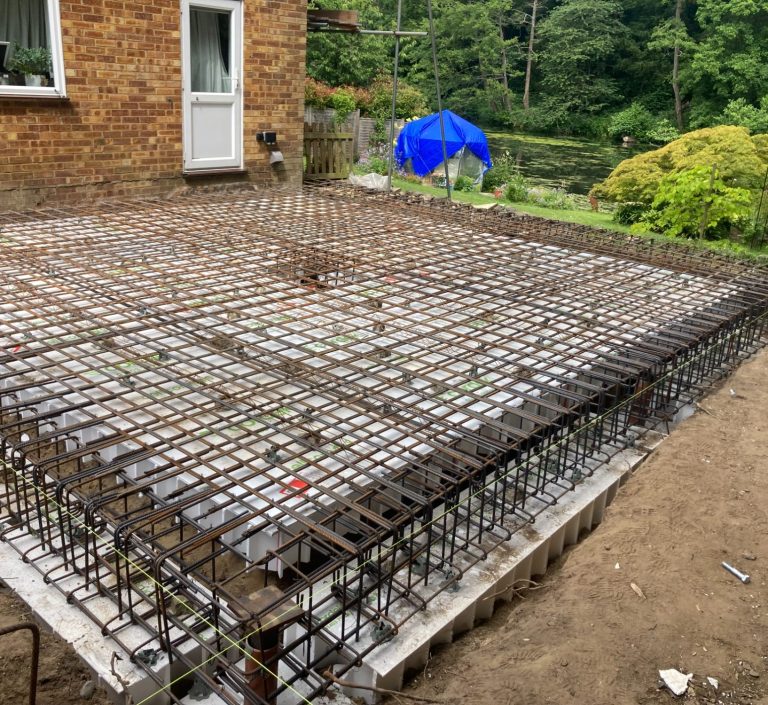

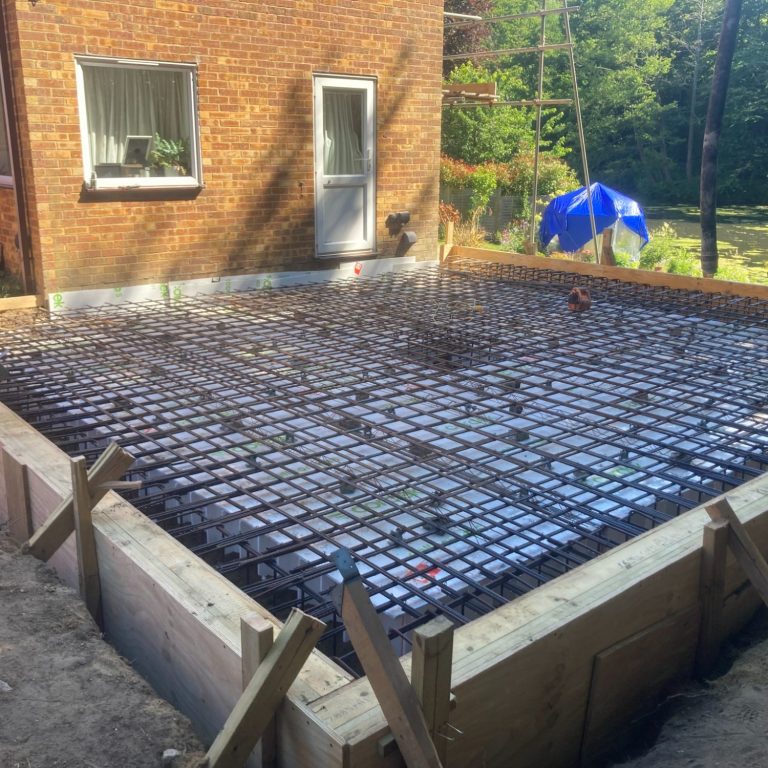

- Rebar Placement: The rebar is placed within formwork, which serves as the mold for the concrete. The placement of rebar is critical: it must be positioned accurately to ensure that the bars are in the correct location to handle the applied stresses. Typically, the steel is placed in the tension zone (for example, on the bottom of beams or slabs) to resist the pulling forces.
- Spacing and Coverage: Proper spacing between the bars and adequate concrete cover (distance from the surface to the rebar) is crucial to prevent corrosion and ensure the long-term durability of the structure.
4. Pouring the Concrete:
- Mixing and Transporting: Concrete is either mixed on-site or delivered ready-mixed. The mix is poured into the formwork over the steel reinforcement. The concrete must be poured uniformly and without segregation to ensure consistent strength throughout the structure.
- Vibration and Compaction: After pouring, the concrete is vibrated or compacted to remove air bubbles and ensure that the mix fills all voids and fully encapsulates the reinforcement. This step is essential for achieving maximum strength and durability.

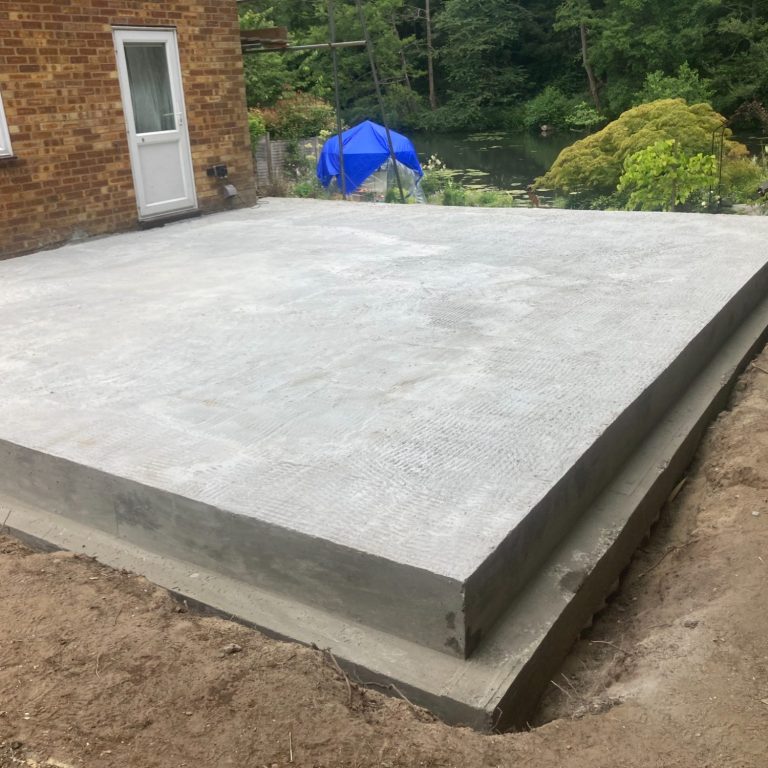

5. Curing the Concrete:
- Curing: Once the concrete is in place, it must be properly cured. Curing is the process of maintaining adequate moisture, temperature, and time conditions to allow the concrete to hydrate and gain strength. This can be done using water sprays, wet burlap, curing compounds, or other methods depending on environmental conditions.
- Strength Development: Concrete typically gains about 70% of its final strength within the first seven days, but full curing may take up to 28 days for the material to reach its design strength.
Code Compliance and Quality Control
Reinforced concrete construction is governed by a number of design codes and standards that ensure structural safety and durability. In many countries, structural engineers follow codes such as:
- British Standards (BS 8110) in the UK
- American Concrete Institute (ACI) 318 in the U.S.
- Eurocode 2 in Europe
These codes provide detailed guidance on reinforcement ratios, material strengths, and construction practices to prevent structural failure and guarantee that the reinforced concrete will perform as expected.
Quality control measures are also essential during the construction process. This includes testing the concrete mix for workability, strength, and consistency, as well as inspecting the placement and alignment of the steel reinforcement. Structural engineers often oversee the construction site to ensure that the design is being accurately followed.
Conclusion: A Strong Foundation for Modern Construction
Reinforced concrete remains a cornerstone of modern construction, enabling the creation of safe, durable, and cost-effective structures. The combination of concrete's compressive strength and steel’s tensile strength, guided by precise specifications from structural engineers, creates a material that can withstand the demands of modern engineering. The method of reinforcing concrete, from design through to construction and quality control, is essential for ensuring the longevity and safety of buildings and infrastructure. Through this process, structural engineers help bring to life structures that stand the test of time, providing critical support to the built environment.
By adhering to well-established engineering principles and construction practices, reinforced concrete remains one of the most reliable and versatile materials available for building the cities and infrastructure of the future.
